LoPy LoRaWAN Nano-Gateway Using MicroPython and TTN

by Christian Ehlers | Mar 18, 2020 | Products

Nano Gateway Hackathon LoPy LoRaWAN

LoRaWAN Nano-Gateway

This example allows to connect a LoPy to a LoRaWAN network such as The Things Network (TTN) or Loriot to be used as a nano-gateway.

This specific example uses settings specifically for connecting to TTN within the European 868 MHz region. To set this up for your specific usage, please see the config.py file.

Up to date versions of these snippets can be found at the following GitHub repository. For more information and discussion about this code, see this forum post.

Nano-Gateway

The Nano-Gateway code is split into 3 files, main.py, config.py and nanogateway.py. These are used to configure and specify how your gateway will connect to your preferred network and how it can act as packet forwarder.

Main (main.py)

This file runs upon bootup and calls the library and config.py files to initalise the nano-gateway. Once configuration is set, the nano-gateway is then started.

import config
from nanogateway import NanoGateway
nanogw = NanoGateway(id=config.GATEWAY_ID, frequency=config.LORA_FREQUENCY,

         password=config.WIFI_PASS, server=config.SERVER,
         port=config.PORT, ntp=config.NTP, ntp_period=config.NTP_PERIOD_S)

nanogw.start()

Configuration (config.py)

This file contains the specific settings for the server and network it is connecting to. Depending on your region and provide (TTN, Loriot, etc.) these will vary. For specific settings, check the forum for others who may have configured their nano-gateway for different configurations.

""" LoPy LoRaWAN Nano Gateway configuration options """
GATEWAY_ID = '11aa334455bb7788' # specified in when registering your gateway
SERVER = 'router.eu.thethings.network' # server address & port to forward received data to
PORT = 1700
NTP = "pool.ntp.org" # NTP server for getting/setting time
NTP_PERIOD_S = 3600 # NTP server polling interval
WIFI_SSID = 'my-wifi'
WIFI_PASS = 'my-wifi-password'
LORA_FREQUENCY = 868100000 # check your specifc region for LORA_FREQUENCY and LORA_DR (datarate)
LORA_DR = "SF7BW125"   # DR_5

Library (nanogateway.py)

The nano-gateway library controls all of the packet generation and forwarding for the LoRa data. This does not require any user configuration and the latest version of this code should be downloaded from the Pycom GitHub account.

""" LoPy Nano Gateway class """
from network import WLAN
from network import LoRa
from machine import Timer
import os
import binascii
import machine
import json
import time
import errno
import _thread
import socket
PROTOCOL_VERSION = const(2)
PUSH_DATA = const(0)
PUSH_ACK = const(1)
PULL_DATA = const(2)
PULL_ACK = const(4)
PULL_RESP = const(3)
TX_ERR_NONE = "NONE"
TX_ERR_TOO_LATE = "TOO_LATE"
TX_ERR_TOO_EARLY = "TOO_EARLY"
TX_ERR_COLLISION_PACKET = "COLLISION_PACKET"
TX_ERR_COLLISION_BEACON = "COLLISION_BEACON"
TX_ERR_TX_FREQ = "TX_FREQ"
TX_ERR_TX_POWER = "TX_POWER"
TX_ERR_GPS_UNLOCKED = "GPS_UNLOCKED"
STAT_PK = {"stat": {"time": "", "lati": 0,
                   "long": 0, "alti": 0,
                   "rxnb": 0, "rxok": 0,
                   "rxfw": 0, "ackr": 100.0,
                   "dwnb": 0, "txnb": 0}}
RX_PK = {"rxpk": [{"time": "", "tmst": 0,
                  "chan": 0, "rfch": 0,
                  "freq": 868.1, "stat": 1,
                  "modu": "LORA", "datr": "SF7BW125",
                  "codr": "4/5", "rssi": 0,
                  "lsnr": 0, "size": 0,
                  "data": ""}]}
TX_ACK_PK = {"txpk_ack":{"error":""}}

class NanoGateway:

    def __init__(self, id, frequency, datarate, ssid, password, server, port, ntp='pool.ntp.org', ntp_period=3600):
        self.id = id
        self.frequency = frequency
        self.sf = self._dr_to_sf(datarate)
        self.ssid = ssid
        self.password = password
        self.server = server
        self.port = port
        self.ntp = ntp
        self.ntp_period = ntp_period
        self.rxnb = 0
        self.rxok = 0
        self.rxfw = 0
        self.dwnb = 0
        self.txnb = 0
        self.stat_alarm = None
        self.pull_alarm = None
        self.uplink_alarm = None
        self.udp_lock = _thread.allocate_lock()
        self.lora = None
        self.lora_sock = None

    def start(self):
        # Change WiFi to STA mode and connect
        self.wlan = WLAN(mode=WLAN.STA)
        self._connect_to_wifi()
        # Get a time Sync
        self.rtc = machine.RTC()
        self.rtc.ntp_sync(self.ntp, update_period=self.ntp_period)
        # Get the server IP and create an UDP socket
        self.server_ip = socket.getaddrinfo(self.server, self.port)[0][-1]
        self.sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM, socket.IPPROTO_UDP)
        self.sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
        self.sock.setblocking(False)
        # Push the first time immediatelly
        self._push_data(self._make_stat_packet())
        # Create the alarms
        self.stat_alarm = Timer.Alarm(handler=lambda t: self._push_data(self._make_stat_packet()), s=60, periodic=True)
        self.pull_alarm = Timer.Alarm(handler=lambda u: self._pull_data(), s=25, periodic=True)
        # Start the UDP receive thread
        _thread.start_new_thread(self._udp_thread, ())
        # Initialize LoRa in LORA mode
        self.lora = LoRa(mode=LoRa.LORA, frequency=self.frequency, bandwidth=LoRa.BW_125KHZ, sf=self.sf,
                        preamble=8, coding_rate=LoRa.CODING_4_5, tx_iq=True)
        # Create a raw LoRa socket
        self.lora_sock = socket.socket(socket.AF_LORA, socket.SOCK_RAW)
        self.lora_sock.setblocking(False)
        self.lora_tx_done = False
        self.lora.callback(trigger=(LoRa.RX_PACKET_EVENT | LoRa.TX_PACKET_EVENT), handler=self._lora_cb)

    def stop(self):
        # TODO: Check how to stop the NTP sync
        # TODO: Create a cancel method for the alarm
        # TODO: kill the UDP thread
        self.sock.close()

    def _connect_to_wifi(self):
        self.wlan.connect(self.ssid, auth=(None, self.password))
        while not self.wlan.isconnected():
            time.sleep(0.5)
        print("WiFi connected!")

    def _dr_to_sf(self, dr):
        sf = dr[2:4]
        if sf[1] not in '0123456789':
            sf = sf[:1]
        return int(sf)

    def _sf_to_dr(self, sf):
        return "SF7BW125"

    def _make_stat_packet(self):
        now = self.rtc.now()
        STAT_PK["stat"]["time"] = "%d-%02d-%02d %02d:%02d:%02d GMT" % (now[0], now[1], now[2], now[3], now[4], now[5])
        STAT_PK["stat"]["rxnb"] = self.rxnb
        STAT_PK["stat"]["rxok"] = self.rxok
        STAT_PK["stat"]["rxfw"] = self.rxfw
        STAT_PK["stat"]["dwnb"] = self.dwnb
        STAT_PK["stat"]["txnb"] = self.txnb
        return json.dumps(STAT_PK)

    def _make_node_packet(self, rx_data, rx_time, tmst, sf, rssi, snr):
        RX_PK["rxpk"][0]["time"] = "%d-%02d-%02dT%02d:%02d:%02d.%dZ" % (rx_time[0], rx_time[1], rx_time[2], rx_time[3], rx_time[4], rx_time[5], rx_time[6])
        RX_PK["rxpk"][0]["tmst"] = tmst
        RX_PK["rxpk"][0]["datr"] = self._sf_to_dr(sf)
        RX_PK["rxpk"][0]["rssi"] = rssi
        RX_PK["rxpk"][0]["lsnr"] = float(snr)
        RX_PK["rxpk"][0]["data"] = binascii.b2a_base64(rx_data)[:-1]
        RX_PK["rxpk"][0]["size"] = len(rx_data)
        return json.dumps(RX_PK)

    def _push_data(self, data):
        token = os.urandom(2)
        packet = bytes([PROTOCOL_VERSION]) + token + bytes([PUSH_DATA]) + binascii.unhexlify(self.id) + data
        with self.udp_lock:
            try:
                self.sock.sendto(packet, self.server_ip)
            except Exception:
                print("PUSH exception")
    def _pull_data(self):
        token = os.urandom(2)
        packet = bytes([PROTOCOL_VERSION]) + token + bytes([PULL_DATA]) + binascii.unhexlify(self.id)
        with self.udp_lock:
            try:
                self.sock.sendto(packet, self.server_ip)
            except Exception:
                print("PULL exception")

    def _ack_pull_rsp(self, token, error):
        TX_ACK_PK["txpk_ack"]["error"] = error
        resp = json.dumps(TX_ACK_PK)
        packet = bytes([PROTOCOL_VERSION]) + token + bytes([PULL_ACK]) + binascii.unhexlify(self.id) + resp
        with self.udp_lock:
            try:
                self.sock.sendto(packet, self.server_ip)
            except Exception:
                print("PULL RSP ACK exception")

    def _lora_cb(self, lora):
        events = lora.events()
        if events & LoRa.RX_PACKET_EVENT:
            self.rxnb += 1
            self.rxok += 1
            rx_data = self.lora_sock.recv(256)
            stats = lora.stats()
            self._push_data(self._make_node_packet(rx_data, self.rtc.now(), stats.timestamp, stats.sf, stats.rssi, stats.snr))
            self.rxfw += 1
        if events & LoRa.TX_PACKET_EVENT:
            self.txnb += 1
            lora.init(mode=LoRa.LORA, frequency=self.frequency, bandwidth=LoRa.BW_125KHZ,
                     sf=self.sf, preamble=8, coding_rate=LoRa.CODING_4_5, tx_iq=True)
    def _send_down_link(self, data, tmst, datarate, frequency):
        self.lora.init(mode=LoRa.LORA, frequency=frequency, bandwidth=LoRa.BW_125KHZ,
                      sf=self._dr_to_sf(datarate), preamble=8, coding_rate=LoRa.CODING_4_5,
                      tx_iq=True)
        while time.ticks_us() < tmst:
            pass
        self.lora_sock.send(data)

    def _udp_thread(self):
        while True:
            try:
                data, src = self.sock.recvfrom(1024)
                _token = data[1:3]
                _type = data[3]
                if _type == PUSH_ACK:
                    print("Push ack")
                elif _type == PULL_ACK:
                    print("Pull ack")
                elif _type == PULL_RESP:
                    self.dwnb += 1
                    ack_error = TX_ERR_NONE
                    tx_pk = json.loads(data[4:])
                    tmst = tx_pk["txpk"]["tmst"]
                    t_us = tmst - time.ticks_us() - 5000
                    if t_us < 0:
                        t_us += 0xFFFFFFFF
                    if t_us < 20000000:
                        self.uplink_alarm = Timer.Alarm(handler=lambda x: self._send_down_link(binascii.a2b_base64(tx_pk["txpk"]["data"]),
                                                                                              tx_pk["txpk"]["tmst"] - 10, tx_pk["txpk"]["datr"],
                                                                                              int(tx_pk["txpk"]["freq"] * 1000000)), us=t_us)
                    else:
                        ack_error = TX_ERR_TOO_LATE
                        print("Downlink timestamp error!, t_us:", t_us)
                    self._ack_pull_rsp(_token, ack_error)
                    print("Pull rsp")
            except socket.timeout:
                pass
            except OSError as e:
                if e.errno == errno.EAGAIN:
                    pass
                else:
                    print("UDP recv OSError Exception")
            except Exception:
                print("UDP recv Exception")
            # Wait before trying to receive again
            time.sleep(0.025)

Registering with TTN

To set up the gateway with The Things Network (TTN), navigate to their website and create/register an account. You will need to enter a username and an email address to verify your account on their platform.

Once you’ve registered an account, you can then start the process of registering your nano-gateway. To do this you’ll need to navigate to the TTN Console web page.

Registering the Gateway

Inside the TTN Console, you’ll have two options, applications and gateways. Select gateways and then click on register gateway. This will allow you to set up and register a new nano-gateway.

On the Register Gateway page, you will need to set the following settings.

These are unique to your gateway, location and country defined frequency. Please verify that you have the correct settings otherwise the gateway will not connect to TTN.

Protocol = Packet Forwarder

Gateway EUI = User Defined (must match config.py)

Description = User Defined

Frequency Plan = Select Country (e.g. EU – 868 MHz)

Location = User Defined

Antenna Placement = Indoor or Outdoor

Once the settings have been applied, click Register Gateway. At this point you’ll arrive at a Gateway Overview page where your configuration settings will be visible. Next click on the Gateway Settings and configure the Router address to match that of your gateway (default – router.eu.thethings.network).

The Gateway should now be configured. Next one or more nodes can now be configured to use the nano-gateway and TTN applications may be built.

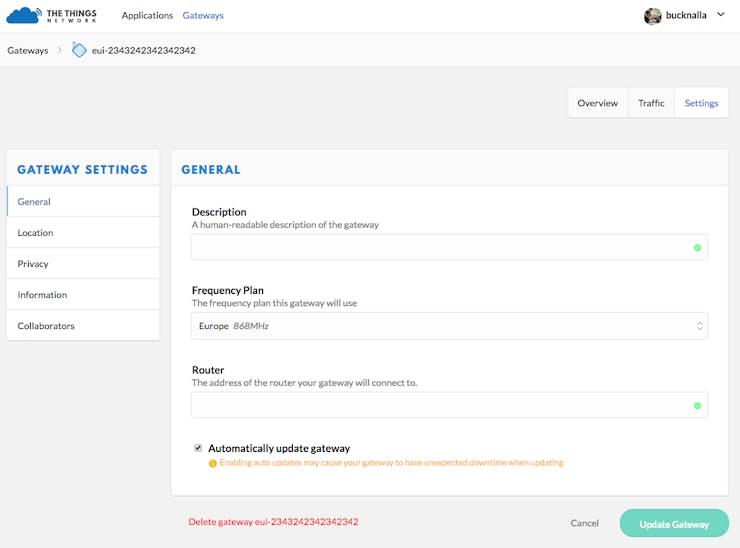

Choose your Gateway Settings for LoRawan network

Choose your Gateway Settings for LoRawan network

LoPy Node

There are two methods of connecting LoPy devices to the nano-gateway, Over the Air Activation (OTAA) and Activation By Personalisation (ABP). The code and instructions for registering these methods are shown below, followed by instruction for how to connect them to an application on TTN.

Warning!

It’s important that the following code examples (also on GitHub) are used to connect to the nano-gateway as it only supports single channel connections. This does not adhere to formal LoRaWAN Gateway specifications, which dictate that the gateway should support 8 channels.

OTAA (Over The Air Activation)

When the LoPy connects an application (via TTN) using OTAA, the network configuration is derived automatically during a handshake between the LoPy and network server. Note that the network keys derived using the OTAA methodology are specific to the device and are used to encrypt and verify transmissions at the network level.

""" OTAA Node example compatible with the LoPy Nano Gateway """
from network import LoRa
import socket
import binascii
import struct
import time

# Initialize LoRa in LORAWAN mode.
lora = LoRa(mode=LoRa.LORAWAN)

# create an OTA authentication params
dev_eui = binascii.unhexlify('AA BB CC DD EE FF 77 78'.replace(' ','')) # these settings can be found from TTN

app_eui = binascii.unhexlify('70 B3 D5 7E F0 00 3B FD'.replace(' ','')) # these settings can be found from TTN

app_key = binascii.unhexlify('36 AB 76 25 FE 77 77 68 81 68 3B 49 53 00 FF D6'.replace(' ','')) # these settings can be found from TTN

# set the 3 default channels to the same frequency (must be before sending the OTAA join request)

lora.add_channel(0, frequency=868100000, dr_min=0, dr_max=5)
lora.add_channel(1, frequency=868100000, dr_min=0, dr_max=5)
lora.add_channel(2, frequency=868100000, dr_min=0, dr_max=5)

# join a network using OTAA
lora.join(activation=LoRa.OTAA, auth=(dev_eui, app_eui, app_key), timeout=0)

# wait until the module has joined the network
while not lora.has_joined():
    time.sleep(2.5)
    print('Not joined yet...')

# remove all the non-default channels
for i in range(3, 16):
    lora.remove_channel(i)

# create a LoRa socket
s = socket.socket(socket.AF_LORA, socket.SOCK_RAW)

# set the LoRaWAN data rate
s.setsockopt(socket.SOL_LORA, socket.SO_DR, 5)

# make the socket blocking
s.setblocking(False)

time.sleep(5.0)

""" Your own code can be written below! """
for i in range (200):
    s.send(b'PKT #' + bytes([i]))
    time.sleep(4)
    rx = s.recv(256)
    if rx:
        print(rx)
    time.sleep(6)

ABP (Activation By Personalisation)

Using ABP join mode requires the user to define the following values and input them into both the LoPy and the TTN Application:

  • Device Address
  • Application Session Key
  • Network Session Key
""" ABP Node example compatible with the LoPy Nano Gateway """
from network import LoRa
import socket
import binascii
import struct
import time

# Initialize LoRa in LORAWAN mode.
lora = LoRa(mode=LoRa.LORAWAN)

# create an ABP authentication params
dev_addr = struct.unpack(">l", binascii.unhexlify('26 01 14 7D'.replace(' ','')))[0] # these settings can be found from TTN

nwk_swkey = binascii.unhexlify('3C74F4F40CAE2221303BC24284FCF3AF'.replace(' ','')) # these settings can be found from TTN

app_swkey = binascii.unhexlify('0FFA7072CC6FF69A102A0F39BEB0880F'.replace(' ','')) # these settings can be found from TTN

# join a network using ABP (Activation By Personalization)
lora.join(activation=LoRa.ABP, auth=(dev_addr, nwk_swkey, app_swkey))

# remove all the non-default channels
for i in range(3, 16):
    lora.remove_channel(i)

# set the 3 default channels to the same frequency
lora.add_channel(0, frequency=868100000, dr_min=0, dr_max=5)
lora.add_channel(1, frequency=868100000, dr_min=0, dr_max=5)
lora.add_channel(2, frequency=868100000, dr_min=0, dr_max=5)

# create a LoRa socket
s = socket.socket(socket.AF_LORA, socket.SOCK_RAW)

# set the LoRaWAN data rate
s.setsockopt(socket.SOL_LORA, socket.SO_DR, 5)

# make the socket blocking
s.setblocking(False)

""" Your own code can be written below! """
for i in range (200):
    s.send(b'PKT #' + bytes([i]))
    time.sleep(4)
    rx = s.recv(256)
    if rx:
        print(rx)
    time.sleep(6)

TTN Applications

Now that the gateway & nodes have been setup, you can then build a TTN Application; i.e. what happens to your LoRa data once it is received by TTN. There are a number of different setups/systems you can use however, the following example demonstrates the HTTP request integration.

Registering an Application

Selecting the Applications tab at the top of the TTN console will bring you to a screen for registering applications. Click register and a new page, similar to the one below, will open.

Enter a unique Application ID as well as a Description & Handler Registration.

You’ll now need to register your LoPy nodes to send data up to the new Application, you just registered.

Application Settings for nano-gateway network

Application Settings

Registering Devices (LoPy)

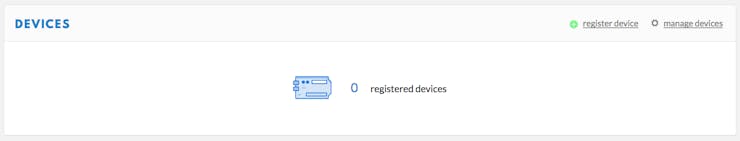

To connect your nodes to the nano-gateway, you’ll need to add some devices to your application. To do this, navigate to the Devices tab on the Application home page and click the Register Device button.

In the Register Device panel, you’ll need to complete the forms for the Device ID and the Device EUI. The Device ID is user specified and is unique to the device in this application. The Device EUI is also user specified but must consist of exactly 8 bytes, given in hexadecimal.

Once the device has been added, you’ll be able to change the Activation Method between OTAA and ABP depending on your preference. This option can be found under the Settings tab.

Register a device for IoT

Register a device for IoT

Adding Application Integrations

Now that your data is arriving on the TTN Backend, you will now want to manage where TTN sends your data on to. To do this, we will use the Integrations tab within the new Application’s settings.

Upon clicking add integration, you’ll be presented with 4 different options. These have various functionality and more information about them can be found on the TTN website/documentation.

We’ll be using the HTTP Integration to forward our LoRaWAN Packets to a remote server/address.

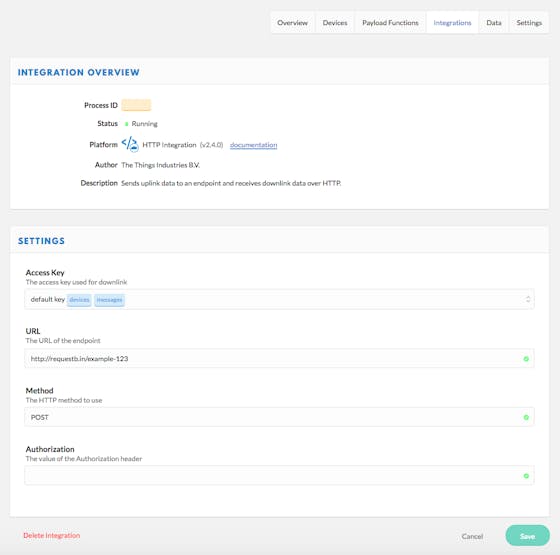

Click HTTP Integration to connect up an endpoint that can receive your data.

For testing, we can use a website called RequestBin to receive the data that TTN forwards (via POST Request). To set this up, navigate to RequestBin and click the Create a RequestBin.

Copy the URL that is generated and past this into the URL form under the Application Settings.

This is the address that TTN will forward your data onto. As soon as your LoPy starts sending messages, TTN will forward these onto RequestBin and you will see them appear at your unique RequestBin URL.

Connecting your application to your LoPy Node

Connecting your application to your LoPy Node

Code

https://github.com/pycom/pycom-libraries/tree/master/examples/lorawan-nano-gateway

Categories

  • Customers
  • Events
  • Learn From Our Pylots
  • News
  • Partner News
  • Partners
  • Product Update
  • Products
  • Tech
  • Uncategorized

Archives

  • June 2022
  • April 2022
  • March 2022
  • September 2021
  • June 2021
  • September 2020
  • June 2020
  • May 2020
  • April 2020
  • March 2020
  • February 2020
  • January 2020
  • December 2019
  • November 2019
  • September 2019
  • August 2019
  • July 2019
  • June 2019
  • May 2019
  • April 2019
  • March 2019
  • February 2019
  • January 2019
  • November 2018
  • August 2018
  • July 2018
  • May 2018
  • November 2017
  • September 2017
  • August 2017
  • July 2017
  • May 2017
  • April 2017
  • March 2017
  • January 2017
  • December 2016
  • November 2016
  • October 2016
  • September 2016
  • August 2016
  • July 2016
  • June 2016
  • May 2016
  • April 2016
  • March 2016
  • February 2016
  • January 2016
  • December 2015

IoT Platform

  • Iot Management
  • Electronics
  • Software
  • Development Services

Developers

  • Getting Started
  • Development tools
  • Documentation
  • Forum
  • Github
  • Guides
  • Support

Company

  • About
  • Vision
  • Board
  • Partners
  • Jobs
  • Branding
  • Manifesto
  • Terms & Conditions

Contact

  • General Enquiries
  • Sales Enquiries
  • Technical Support
  • PR Enquiries

Social
